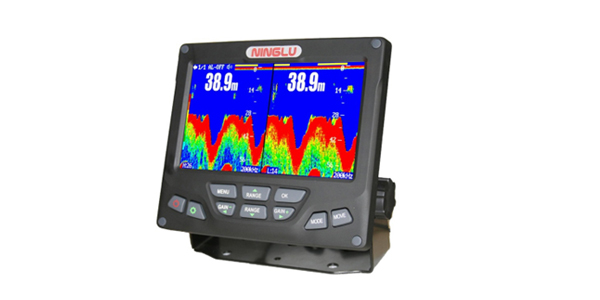

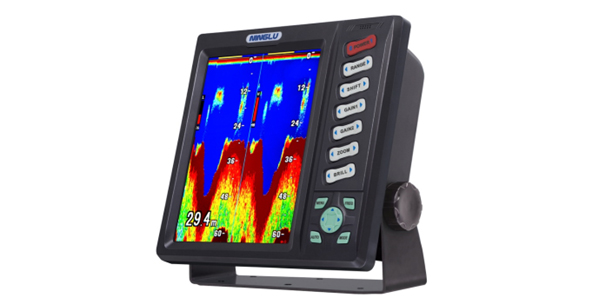

The FS117 is a high-quality, dual-frequency fish finder. It uses TFT LCD to provide a color display for easy daylight viewing that can be dimmed for night fishing. With 8 or 12 colors bar, the colors represent different signal strengths, making the displays easy to recognize the bottom and fish schools. You can choose table mounting or flush mounting for optimum viewing.
Features
Ninglu DS2008, echo sounder with a 10.4 inch, high-resolution graphic LCD, continuously shows echo graphics on the LCD along with complete navigational details. External connectors are provided for a printer, and NMEA in/output. DS2008 contains history memory that stores depth, time, and other available navigation data continuously for the preceding 20 hours.
FEATURES
BNWAS BW508 is to monitor the awareness of the Officer of the Watch (OOW) and automatically alerts the Master or another qualified OOW if for any reason the OOW becomes incapable of performing the OOW's duties.
Additionally, BW508 also provides the OOW or other equipment with a means of emergency calling for immediate assistance.
Features
Operation and Installation Manual Download
INGLU IR261, digital depth repeater, is used with echo sounders where NMEA0183 output is available. The operator may select the indication alarm depth in the menu. Brightness is adjusted on the front panel, or from the optional remote controller, IR30DIM. IR261 will only indicate depth below the transducer.

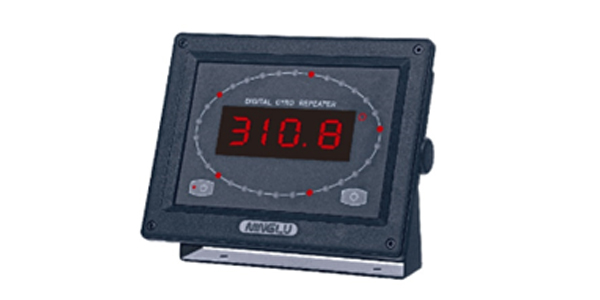

IR361 is a digital gyro repeater that displays the heading angle in the LED segment display and indicates the rate of turn (ROT) with 30 dual-color surrounding LEDs. The IR361 will display heading angle given by the HDT message from a gyro or other equipment (NMEA 0183) and indicate ROT by calculating change in heading based on the HDT input and the time between each message.

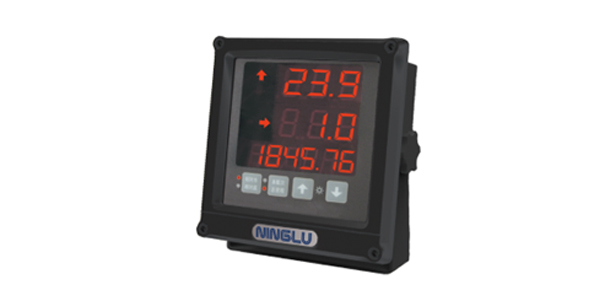

IR861, dual axis speed and distance repeater, displays transversal and longitudinal ships speed information.
The operator may select between bottom and water related speed when these are provided from log.
IR861 indicates trip and total distance measured by the log.
Brightness is adjusted on the front panel, or from a remote controller.
INFORMATION FOR MANUAL
Accepted messages (NMEA0183, version 2.30), talker identifier is not processed:

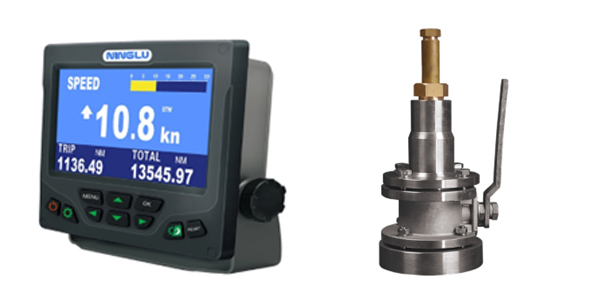

DS99 is a single axis Doppler Speed Log, displaying ship’s speed relative to water in one axis (STW, Fore/Aft) and distance (Trip/Total) in a 7 inch TFT LCD, using the Doppler principle.
Applying new technology of high integration and stability, DS99 provides you the optimum choice for large ships under 50000 GT.
Its rugged and modern design offers excellent user feelings.

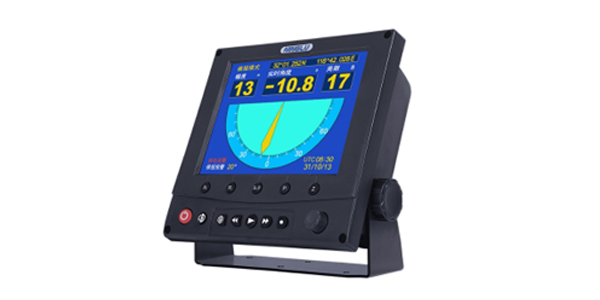

Electronic inclinometer IM330 is a device to measure ship hull posture, including roll actual angle, roll period, roll amplitude, pitch actual angle, pitch period, pitch amplitude, date, time, longitude and latitude.
It also has an alarm function for ship’s officers to avoid dangerous situations and the alarm messages (date, time, longitude, latitude, roll angle, and pitch angle) are recorded in the history for check.
Features

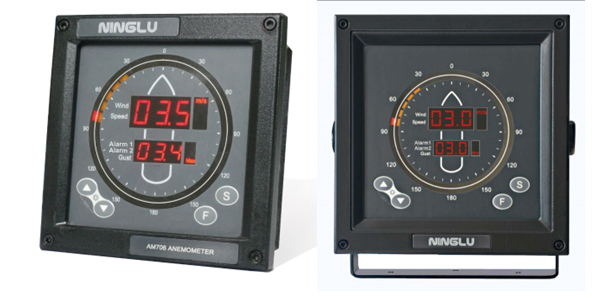

The Marine Wind Display AM706C has special features to meet with ExxonMobil rules.
The Marine Wind Display AM706E has special features for shipboard use.

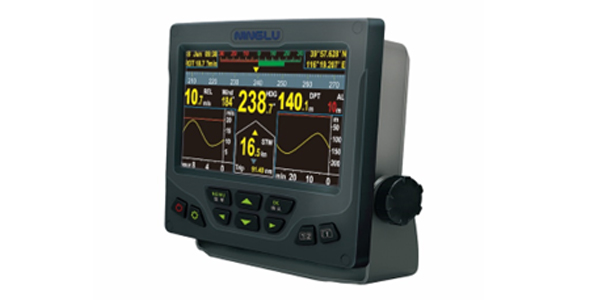

NM501, 7 inch Multifunctional Repeater, displays depth, wind, gyro, speed log, and GPS navigation messages on one screen. Its rugged and handsome design offers excellent user feelings. Remote controller is available for ceiling installation.
Features
DS207 is one of the most sold echo sounders used in inland rivers. The echo sounder graphics are continuously shown on a 7 inch LCD along with complete navigational details.
2-channels realize observation of depth detected from different locations of the ship. Information from both of two transducers can be displayed simultaneously. Gain of the 2 channels can be set separately.
Features

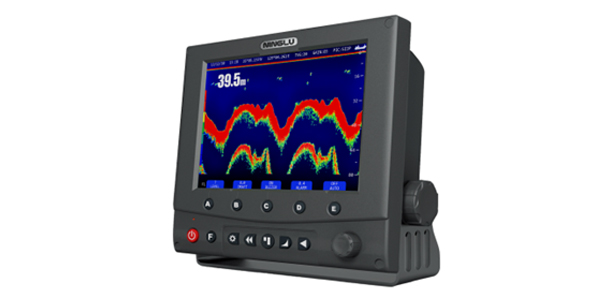

DS2008 is a navigation echo sounder with a 10.4 inch, high-resolution graphic LCD, continuously displaying echo graphics on the LCD along with complete navigational details. External connectors are provided for a printer, and NMEA in/output. DS2008 contains history memory that stores depth, time, and other available navigation data continuously for the preceding 20 hours.
Dual channels echo sounder display DS2008S and DS2008H can display depth at the FORE and AFT positions simultaneously.
Features

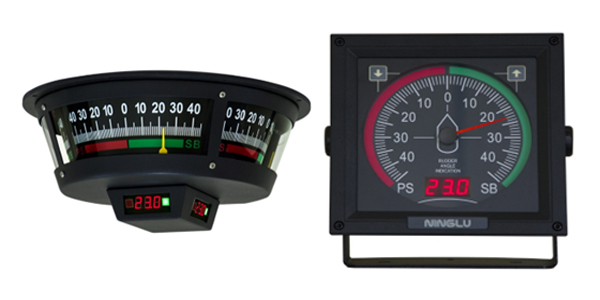

Rudder angle indication system AD80 is used to accurately and in real-time indicate the direction and position of the rudder in the wheelhouse, ECC room, and steering gear room for the crew.
With the functions of flexible configuration, good dimming, easy to install and maintain, AD80 fully complies with the regulations of IMO and the standard IEC61162 sentences.
Features

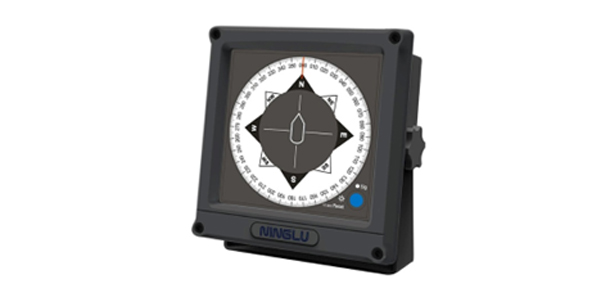

Steering repeater SR362 ensures a clear indication of the heading information by using a 360° compass card.
Brightness is adjusted on the front panel, via NMEA, or from the optional remote controller, DIM930. Multiple installation methods facilitate observation in different positions.
The IR762 weather repeater is a combined 7” LCD display for relative wind speed and direction, temperature, relative humidity, and barometric information.

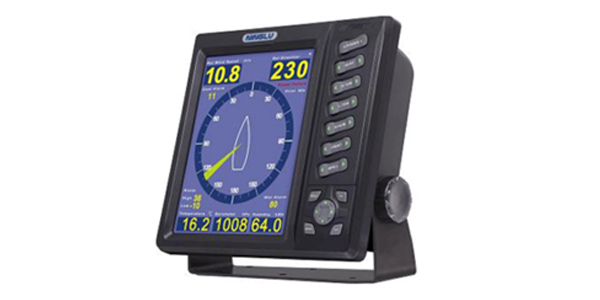

The marine weather station AM706D is a multi-functional measuring instrument.
It can accurately measure and display real-time relative wind speed and direction, true wind speed and direction (with GPS input), air temperature, relative humidity and barometric pressure.
In addition, it can print these parameters of time, longitude and latitude, ship speed, and navigational signal. It is important and necessary for observation and safe navigation.

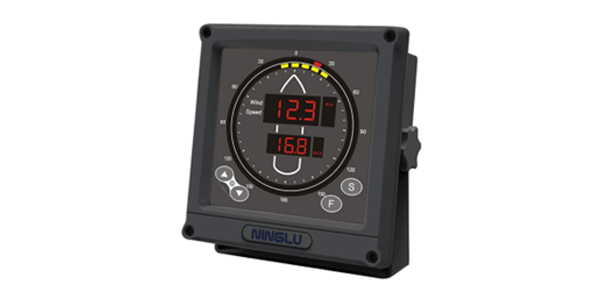

The IR761 wind repeater is a combined display for wind speed and direction. It receives NMEA0183 signal from a marine anemometer (talker) and displays the wind speed and max wind speed on digit LED, wind direction on a double LED circle.
Its 144x144 Din size cabinet is suitable for panel (flush) mounting. Also, tabletop and wall mounting are available with the bracket.
