DANELEC

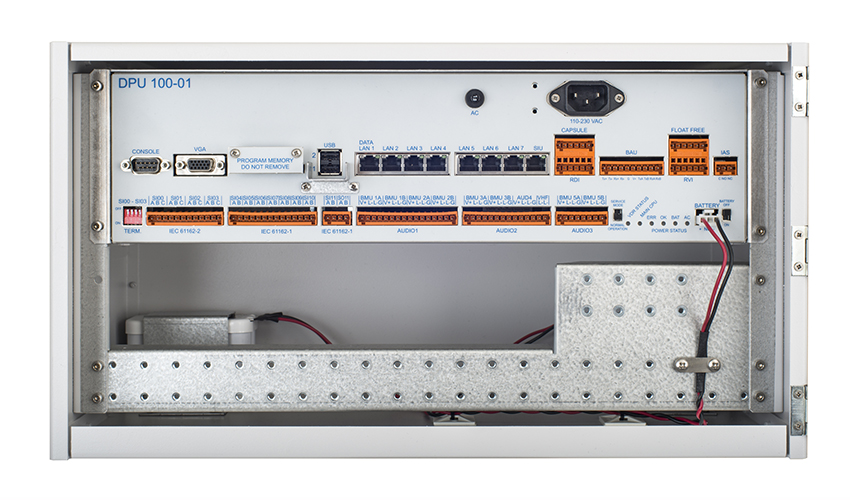

Data Acquisition Unit

• 30 days of recording capacity on built-in SSD
• 10 inputs for bridge audio and VHF
• 12 inputs for serial data (IEC 61162-1, IEC 61162-2 and Modbus)
• 7 inputs for IEC 61162-450 network data (1000BASE-T)
• AC power (110-230V, 50-60Hz)
• Built-in UPS with NiMh batteries

W: 495 mm H: 250 mm D: 242 mm W: 11 kg

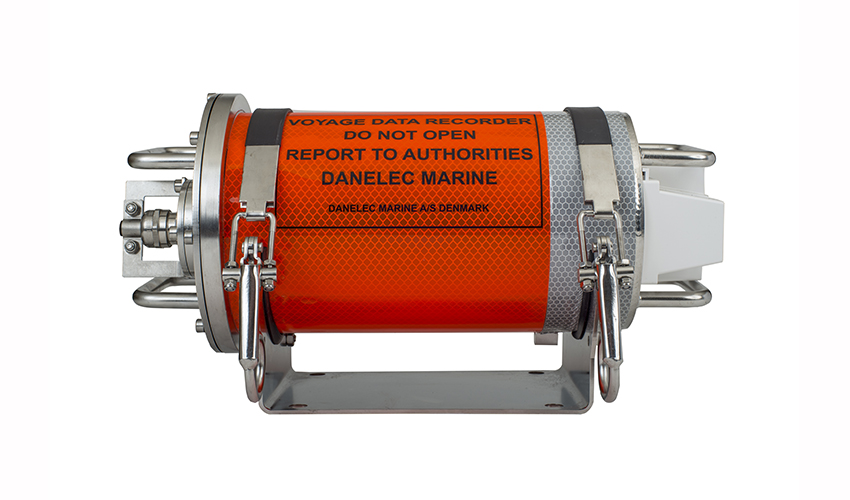

Protective Fixed Capsule

• 48 hours of recording capacity
• 90 days acoustic underwater beacon
• Supplied with 50 meters cable
• Ethernet (100BASE-TX) interface
• Powered from Data Acquisition Unit (PoE)

W: 360 mm H: 195 mm D: 208 mm W: 8 kg

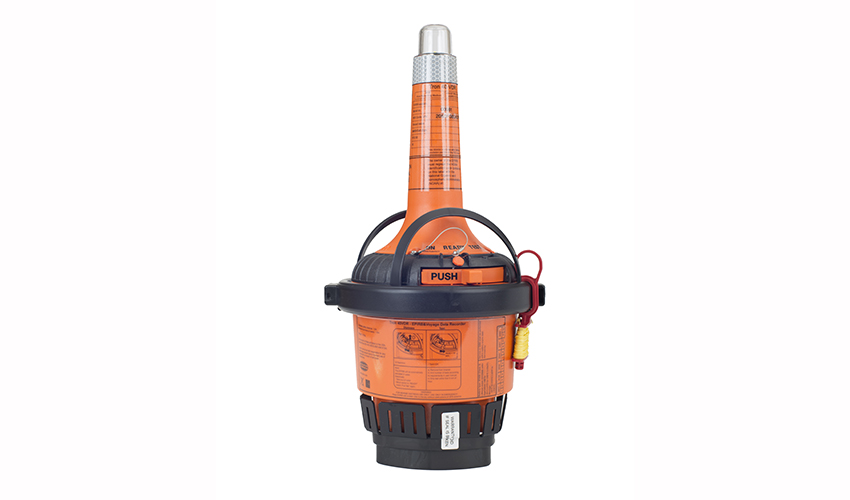

Float-free Capsule MK2

• 48 hours of recording capacity
• Supplied with 50 meters cable
• Ethernet (100BASE-TX) interface
• Powered from Data Acquisition Unit (PoE)
• COMSAR/COSPASS approved EPIRB
• Built-in AIS emergency transponder

W: 237 mm H: 554 mm D: 214 mm W: 5.5 kg

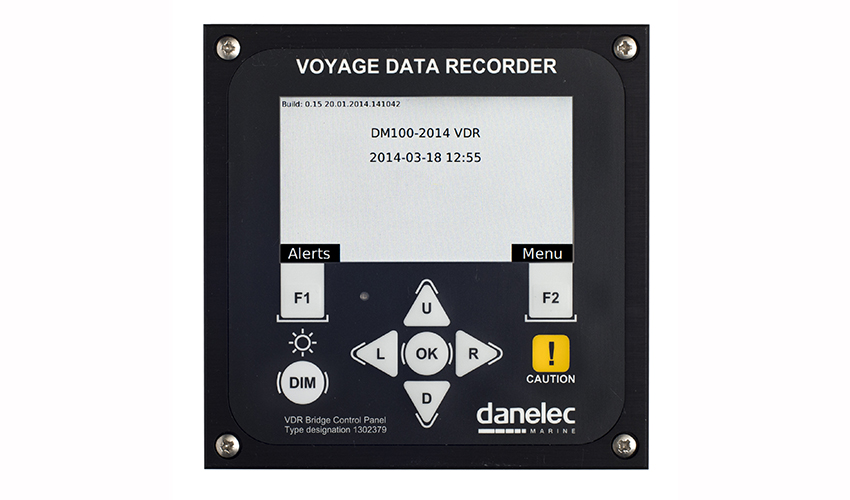

Bridge Control Panel

• Interface for Operational Performance Test
• Built-in graphical colour TFT LCD display
• Ethernet (100BASE-TX) interface
• Powered from Data Acquisition Unit (PoE)

W: 114 mm H: 144 mm D: 64 mm W: 1.1 kg

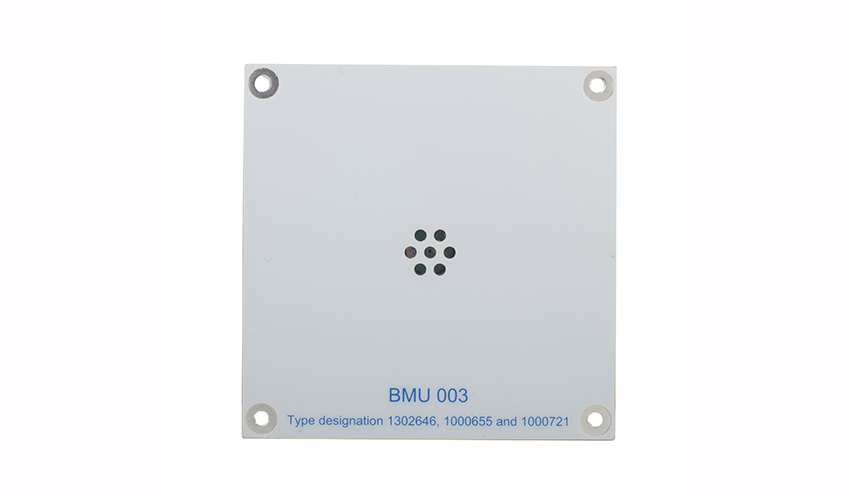

Indoor Bridge Microphones

• Built-in buzzer for self-test
• Built-in amplifier and filters
• Powered from Data Acquisition Unit

W: 84 mm H: 84 mm D: 30 mm W: 0.1 kg

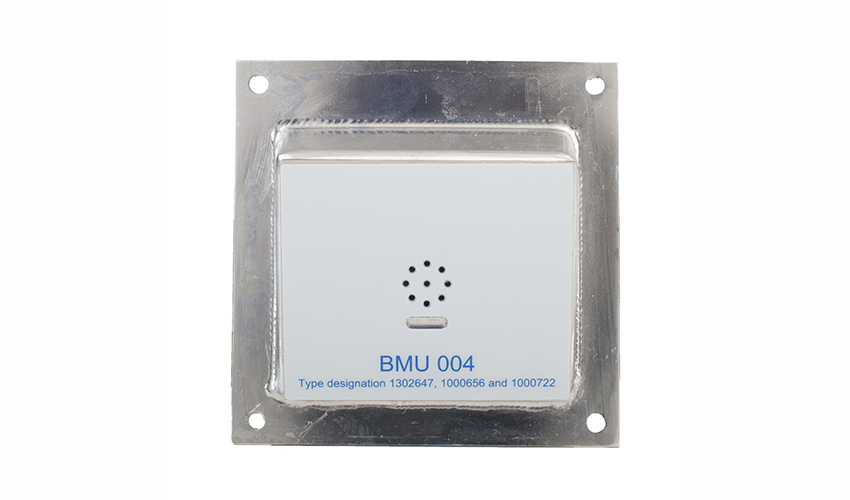

Outdoor Bridge Microphones

• Built-in buzzer for self-test
• Built-in amplifier and filters
• IP66 water resistant
• Powered from Data Acquisition Unit

W: 96 mm H: 96 mm D: 60 mm W: 0.5 kg

Sensor Interface Unit

• 8 inputs for serial data (IEC 61162-1, IEC 61162-2, Modbus)
• 8 or 16 inputs for analog data
• 64 inputs for digital data
• 1 free slot (modular version)
• AC power (110-230V, 50-60Hz)

W: 525 mm H: 342 mm D: 169 mm W: 12 kg

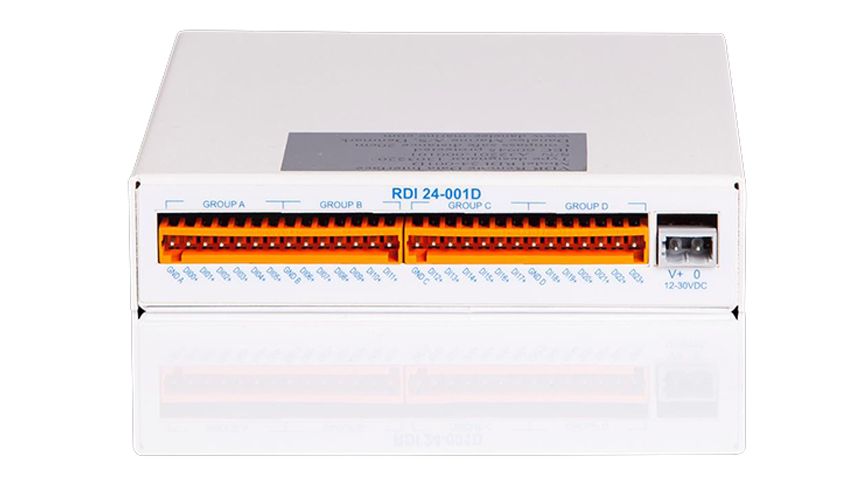

Remote Data Interface (Serial/Analog/Digital)

• 8 inputs for serial data (IEC 61162-1, IEC 61162-2, Modbus) (serial version)
• 8 inputs for analog data (analog version)
• 24 inputs for digital data (digital version)
• Powered from Data Acquisition Unit or locally
• Can be daisy chained
• Can operate as standalone equipment
• Support for SWAP technology™

W: 160 mm H: 32 mm D: 163 mm W: 0.3 kg

Remote Video Interface (Analog: BNC / Digital: DVI-I)

• 2 inputs for video recording
• RGBHV (analog version)
• DVI-D / DVI-A (digital version)
• Ethernet (100BASE-TX) interface
• Powered from Data Acquisition Unit (PoE)

W: 149 mm H: 49 mm D: 206 mm W: 0.5 kg

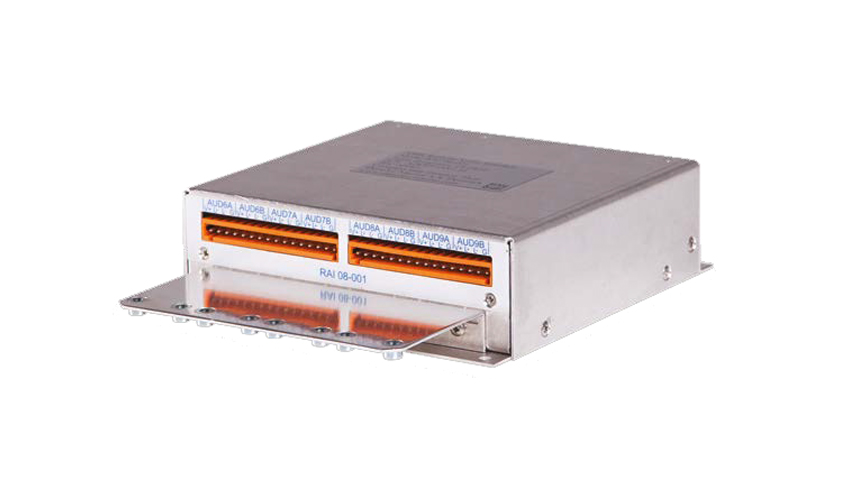

Remote Audio Interface (4 / 8 channels)

• 4 / 8 inputs for bridge audio and VHF
• Ethernet (100BASE-TX) interface
• Powered from Data Acquisition Unit (PoE)

W: 149 mm H: 49 mm D: 256 mm W: 0.5 kg

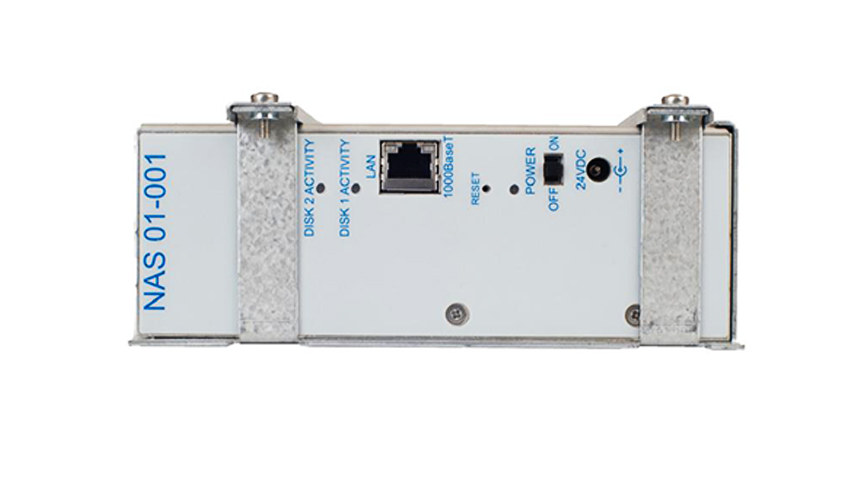

Extended Data Storage

• Up to 18 months of recording time
• Marine approved (IEC 60945)
• 512GB, 1TB, 3.8TB or 7.6TB SSD
• Also available in 2x3.8TB or 2x7.6TB RAID 1 configurations
• Ethernet (1000BASE-T) interface
• AC power (110-230V, 50-60Hz) through AC adaptor

W: 61 mm H: 172 mm D: 116 mm W: 1.1 kg

Vessel Remote Server 002 G2

• 5 x Ethernet (1000BASE-T) ports
• 1 x RS-422 serial interface
• 1 x digital input
• IEC 60945 protected
• 256GB SSD
• 1GB RAM
• 1000 max no. of tags
• Built-in motion-tracking sensor
• USB port for future applications
• 12-24V DC power input
• AC power (110-230V, 50-60Hz) through AC adaptor
• Normal or Extended Access operating modes
• DIN rail mountable or standalone

W: 180 mm H: 30 mm D: 100 mm W: 0.45 kg

Vessel Remote Server 003

• 8 x Ethernet (1000BASE-T) ports
• 1 x RS-422 serial interface
• 1 x digital input
• IEC 60945 protected
• 1TB SSD
• 4GB RAM
• 10.000 max no. of tags
• Built-in motion-tracking sensor
• Application hosting
• 12-24V DC power input
• AC power (110-230V, 50-60Hz) through AC adaptor
• Normal or Extended Access operating modes

W: 292 mm H: 32 mm D: 124,5 mm W: 1 kg

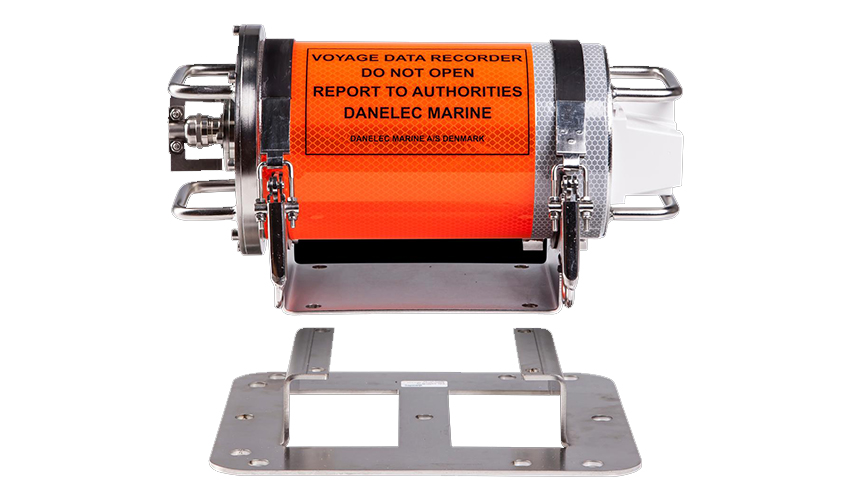

VDR Conversion Kit

• Reduces installation time by facilitating replacement of existing equipment regardless of make or model
• Pre-drilled universal adaptor plates and mounting brackets
• Serial, digital and analog interfaces
• Existing cabling can typically be reused
• Software tool for conversion of old configuration files3
