KINGSAT

...

KM-P6A

Basic Model, 64cm Dish Diameter, Ku Band

  • 2-Axis stabilized and 3-Axis tracking
  • Azimuth 0-690°
  • Free GPS Gyro
  • Support Webpage Interface Function
  • Step Motor
  • ASA Radome (Loss < 0.8dB)

Technology & Feature

  • Kingsat VSAT are open systems compatible with various modems such as Direct, Newtech, Hughes, UHP, Gilat, Satpath, and etc.
  • Unique tracking algorithm makes KINGSAT VSAT keep fast and stable tracking performance in different condition of sea.
  • One Button Switching to TVRO Mode is useful function to easily verify hardware status.
  • Web Interface Function makes remote commissioning and remote trouble shooting easily.
Download Brochure
...

KM-P6E

Enhanced Model, 64cm Dish Diameter, Ku Band

  • 3-Axis stabilized and 4-Axis tracking
  • Azimuth 0-690°
  • Builtin Dual GPS Gyro
  • Support Webpage Interface Function
  • Step Motor
  • ASA Radome (Loss < 0.8dB)

Technology & Feature

  • One Button Switching to TVRO Mode is useful function to easily verify hardware status.
  • Unique tracking algorithm makes KINGSAT VSAT keep fast and stable tracking performance in different condition of sea.
  • Web Interface Function makes remote commissioning and remote trouble shooting easily.
  • Builtin GPS Gyro ensures fast tracking target satellite and keep pointing to direction of target satellite when blockage is between antenna and satellite.
Download Brochure
...

KM-P8

Standard Model, 85cm Dish Diameter, Ku Band

  • 3-Axis stabilized and 4-Axis tracking
  • Azimuth 0-690°
  • Free GPS Gyro
  • Support Webpage Interface Function
  • DC Motor with Brake
  • Support S2/ACM Demodulator
  • ASA Radome (Loss < 0.8dB)

Technology & Feature

  • One Button Switching to TVRO Mode is useful function to easily verify hardware status.
  • Unique tracking algorithm makes KINGSAT VSAT keep fast and stable tracking performance in different condition of sea.
  • Web Interface Function makes remote commissioning and remote trouble shooting easily.
  • Kingsat VSAT are open systems compatible with various modems such as iDirect, Newtech, Hughes, UHP, Gilat, Satpath, and etc.
Download Brochure
...

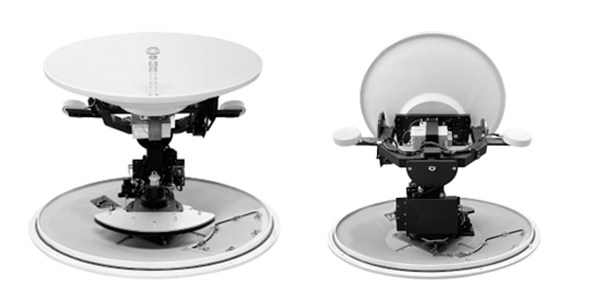

KM-P8E

Enhanced Model, 85cm Dish Diameter, Ku Band

  • 3-Axis stabilized and 4-Axis tracking
  • Azimuth 0-690°
  • Builtin Dual GPS Gyro
  • Support Webpage Interface Function
  • DC Motor with Brake
  • Support S2/ACM Demodulator
  • ASA Radome (Loss < 0.8dB)

Technology & Feature

  • Web Interface Function makes remote commissioning and remote troubleshooting easily.
  • Unique tracking algorithm makes KINGSAT VSAT keep fast and stable tracking performance in different conditions of sea.
  • Builtin GPS Gyro ensures fast tracking of target satellite and keeps pointing to the direction of the target satellite when blockage is between the antenna and satellite.
  • One Button Switching to TVRO Mode is a useful function to easily verify hardware status.
Download Brochure
...

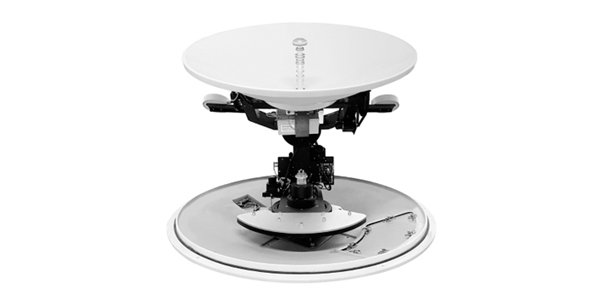

KM-PE+8

Ultimate Model, 85cm Dish Diameter, Ku Band

  • 3-Axis stabilized and 4-Axis tracking
  • Azimuth unlimited
  • Builtin Dual GPS Gyro
  • Support Webpage Interface Function
  • DC Motor with Brake
  • Support S2/ACM Demodulator
  • Honey Comb Radome (Loss < 0.2dB)

Technology & Feature

  • Web Interface Function makes remote commissioning and remote troubleshooting easily.
  • Unique tracking algorithm makes KINGSAT VSAT keep fast and stable tracking performance in different conditions of sea.
  • Built-in GPS Gyro ensures fast tracking of target satellite and keeps pointing to the direction of the target satellite when blockage is between the antenna and satellite.
  • One Button Switching to TVRO Mode is a useful function to easily verify hardware status.
Download Brochure
...

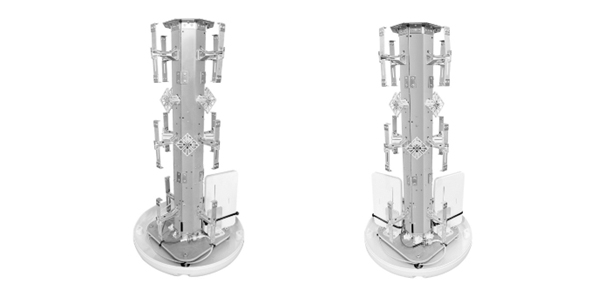

KM-Z3

  • Combine Low Band and High Band Element Solution
  • Low Band High Gain Up to 10db
  • Element beamwidth is 90°, 4 sides to fulfill 360° direction
  • Support Available Band Networks for 4G-LTE
  • Easy to Setup, Use and Maintenance
  • Built-in 4G router, Simple Design

Technology & Feature

  • High Gain, Omni-direction Antenna
  • Easy to Setup, Use and maintain
  • Built-in 4G router, simple design
  • Support Available Band Networks for 4G-LTE
  • POE Power Supply, Easy to Wire
  • Specially for to Marine Industry, High Stability
Download Brochure
...

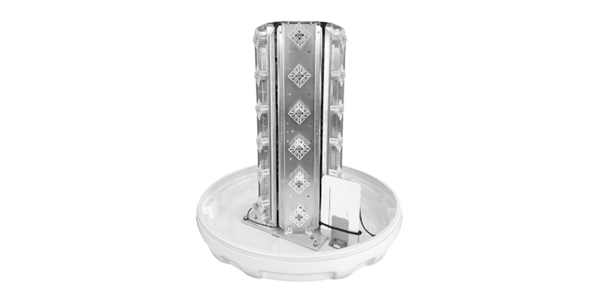

KM-Z6

All High Band Element Solution
  • High Band High Gain Up to 15db
  • Element beamwidth is 60°, 6 sides to fulfill 360° direction
  • Support Available Band Networks for 4G-LTE
  • Easy to Setup, Use and Maintenance
  • Built-in 4G router, Simple Design

Technology & Feature

  • High Gain, Omni-direction Antenna
  • Easy to Setup, Use and maintain
  • Built-in 4G router, simple design
  • Support Available Band Networks for 4G-LTE
  • POE Power Supply, Easy to Wire
  • Specially for to Marine Industry, High Stability
